Frameless Cabinet System

Design it, cut it, skip the complexity.

Draw the room and Cabinet Run builds the cut list for you, every panel with its boring and joinery. Then it nests the sheets and writes the files for your CNC: labelled DXF, or G-code for Mach4 and Centroid CNC12 (Avid).

Start a project14-day trial · no card required
Live demo · try itengine output
loading 3D…

30″ × 34.5″ × 24″ · orbit to spin · solid / technical

20
Pieces
2
Sheets
76%
Yield
Nested · 2 sheets · 48×96 · 0.5″ gaps
1291013
Sheet 1
1617181920
Sheet 2
Cut list · 20 parts
1Left side24″ × 34.5″×1
2Right side24″ × 34.5″×1
3Stretcher (front)4″ × 28.5″×1
4Stretcher (rear)4″ × 28.5″×1
5Rear nailer (top)4″ × 28.5″×1
6Rear nailer (bottom)4″ × 28.5″×1
7Drawer section - Drawer 1 - Front3.71″ × 26.22″×1
8Drawer section - Drawer 1 - Back3.71″ × 26.22″×1
9Drawer section - Drawer 1 - Bottom21.95″ × 26.2″×1
10Door section - Door (left)14.91″ × 24.32″×1
11Drawer section - Drawer 1 - Left side3.71″ × 22.5″×1
12Drawer section - Drawer 1 - Right side3.71″ × 22.5″×1
13Drawer section - Drawer 1 - Front panel29.88″ × 6″×1
14Toe kick face (painted)30″ × 4″×1
15Toe kick board (recessed)28.5″ × 4″×1
16Back28.97″ × 29.99″×1
17Fixed shelf22.97″ × 28.5″×1
18Door section - Door (right)14.91″ × 24.32″×1
19Adjustable shelf22.58″ × 28.44″×1
20Bottom24″ × 28.5″×1
32mm system boringShaker & groove doorsNesting by materialLabelled DXFG-code · Mach4 & CNC12Part labels
One job, start to finish

From the first wall to the last sheet

One project carries the whole job. Click through the real screens.

Kitchen · Design · Front (elevation)
Design the room

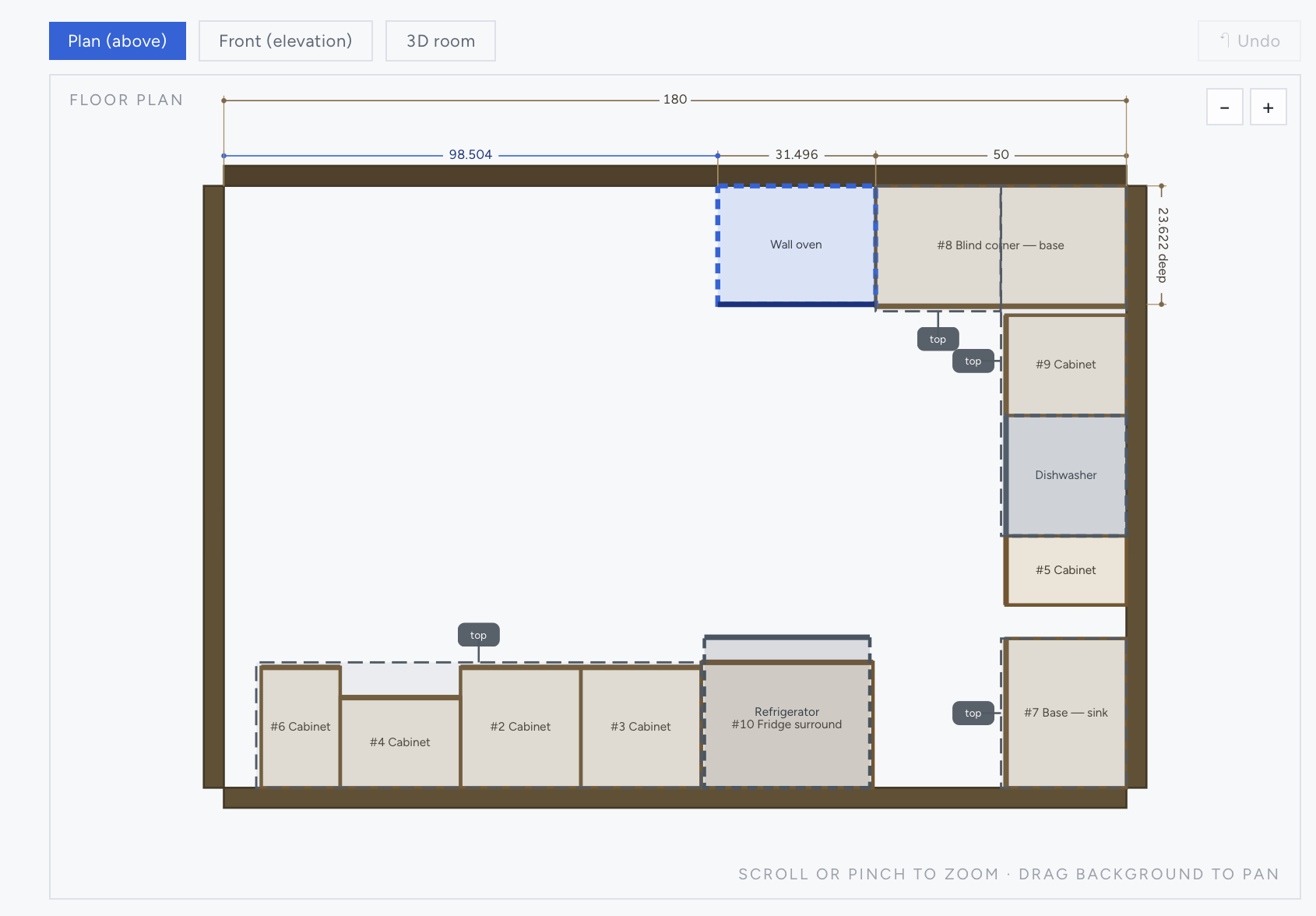

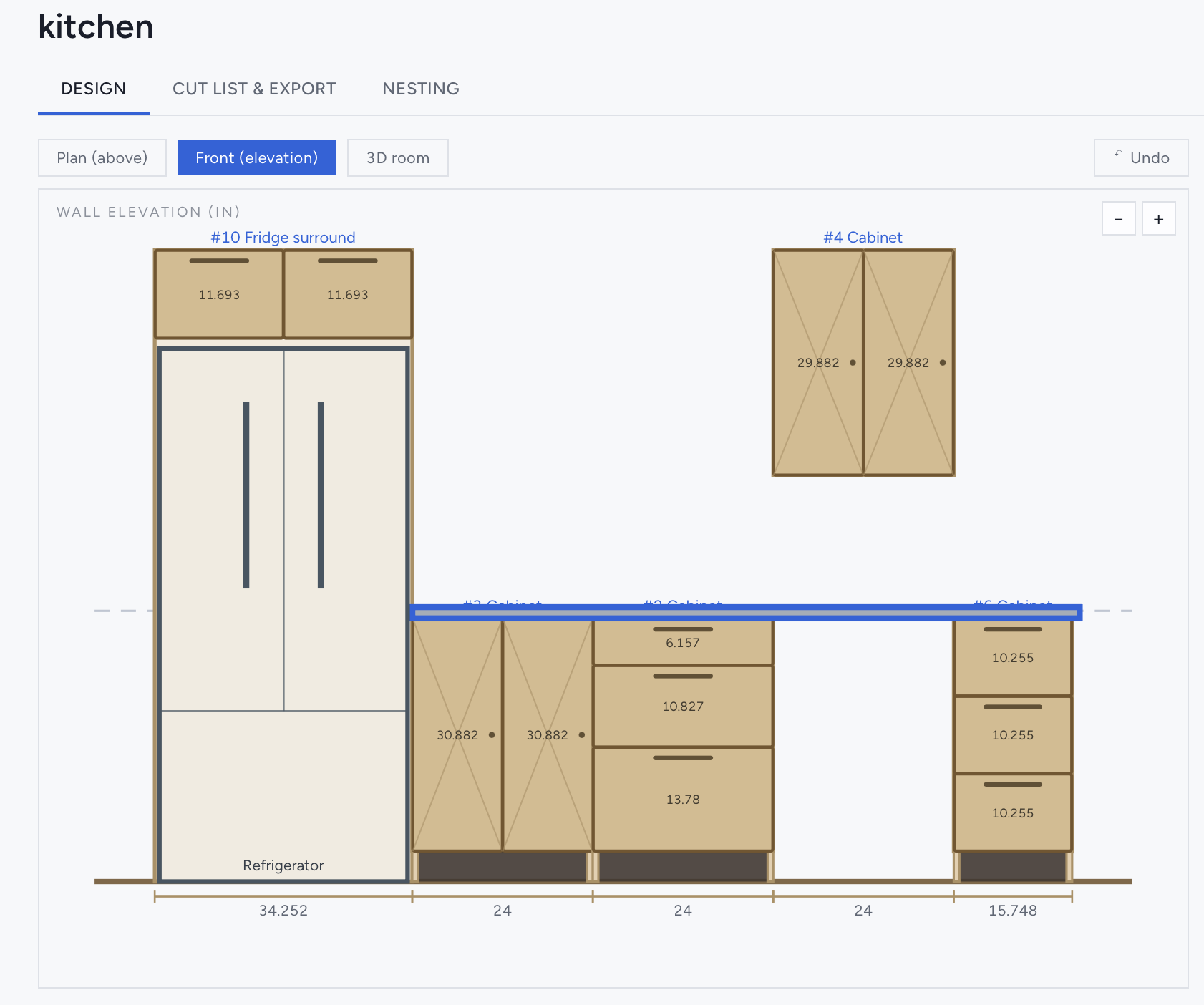

Walls, cabinets and appliances on a floor plan and to-scale elevations. Drag a cabinet along a wall and it snaps flush.
What's in the box

Everything a frameless shop needs

01

Every part, automatically

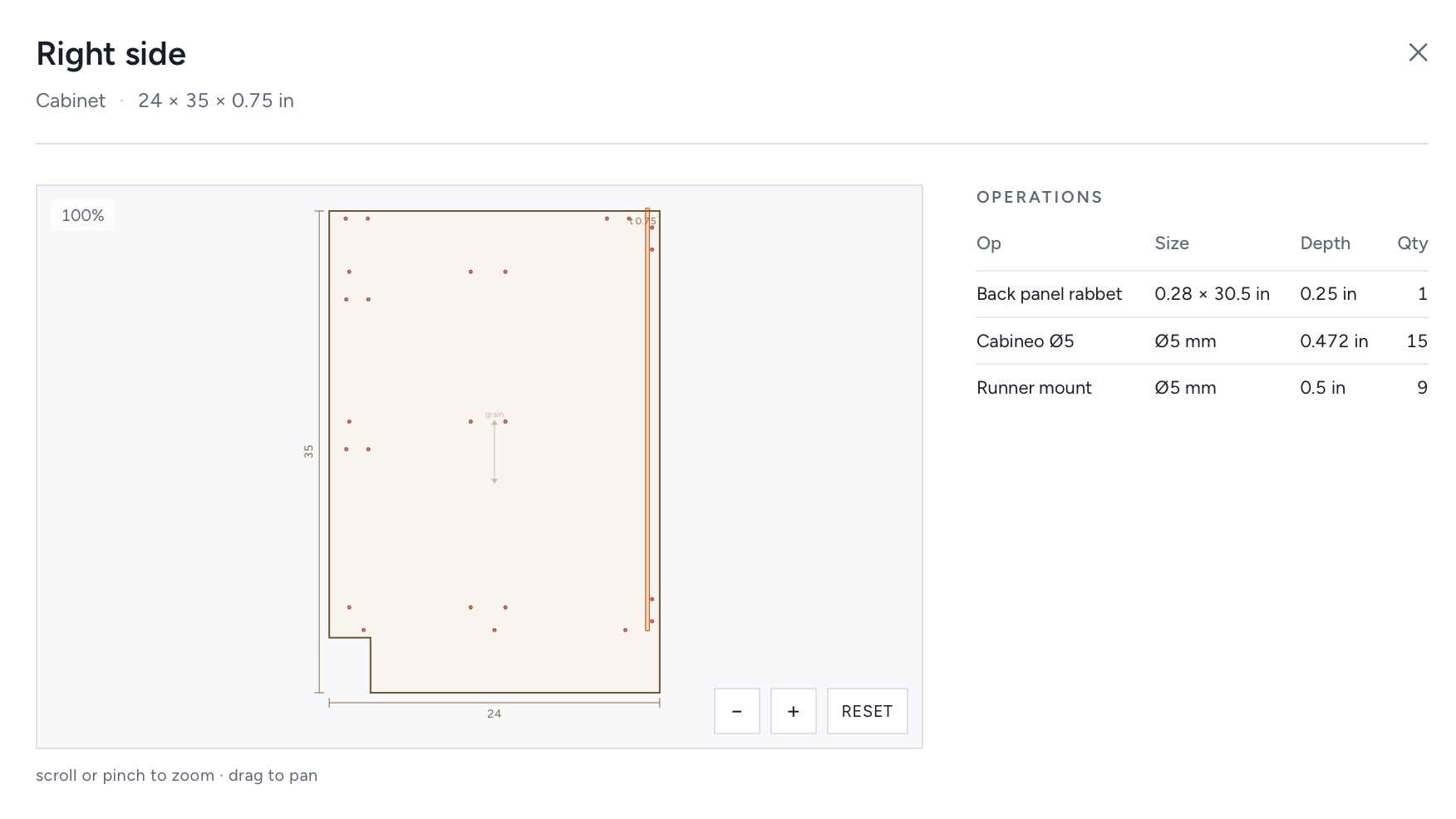

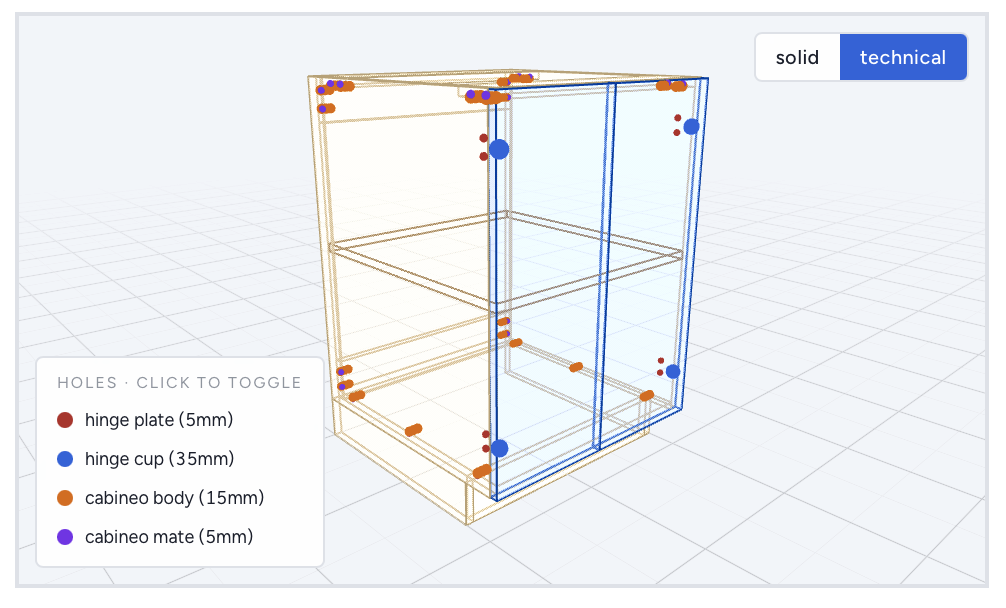

Sides, backs, stretchers and drawer boxes, with 32mm boring, dados and reveals worked out for you.

02

Shaker & groove doors

Pockets, frame bevels and grooves on the face, hinge cups on the back. One flip per sheet.

03

Drawer boxes

Dovetail or butt joints, sized to your runners: Blum, Salice and more.

04

Floating shelves

Folded V-groove shelves, cut from one board.

05

Nesting by material

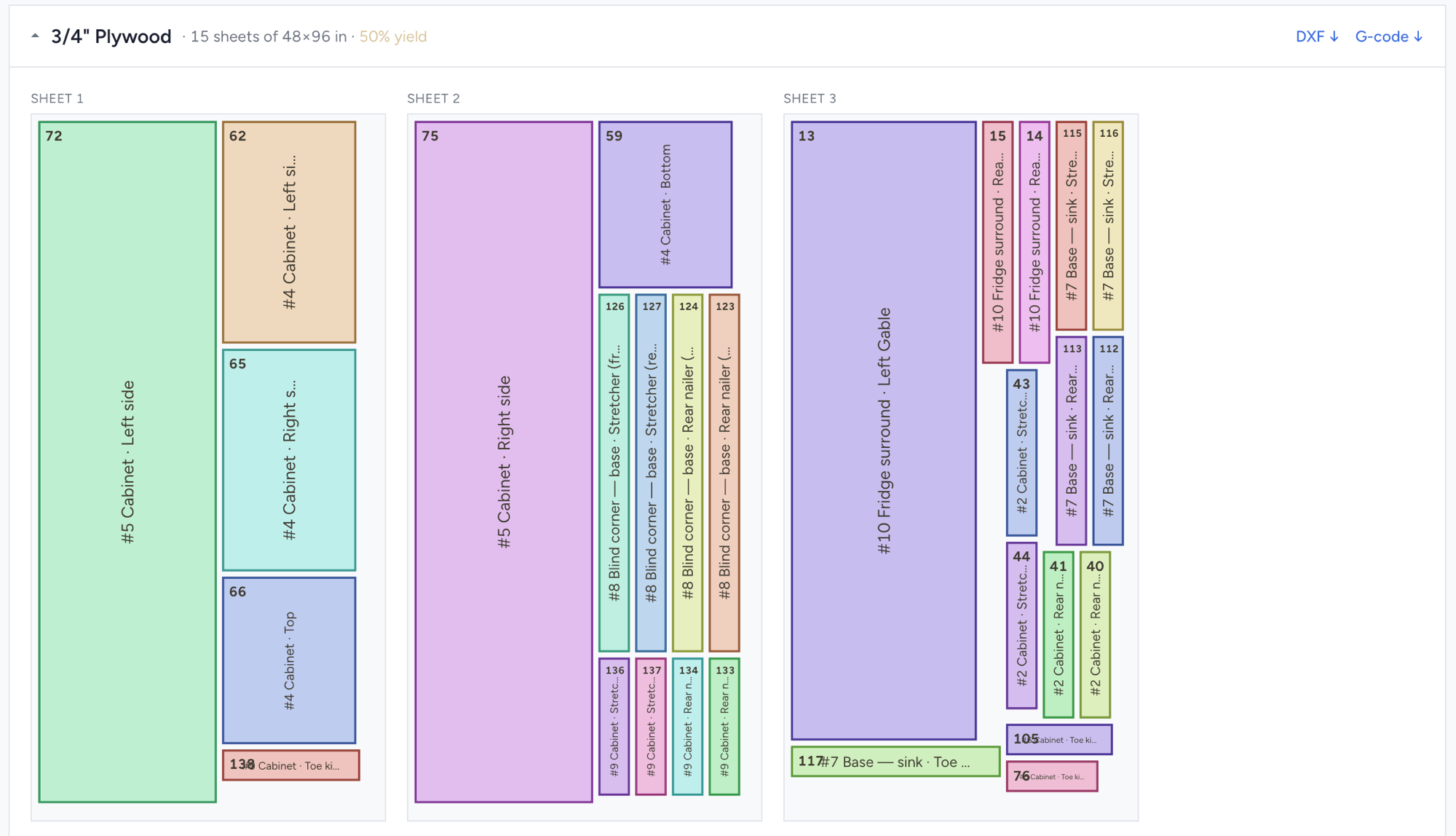

Whole-job nests per material, with grain, gaps, cut order and nail spots.

06

Drawings set

Plan, elevations, sections and an approval box, printed as a PDF for the client.

07

Costing & quotes

Material, hardware and labour costed, and a quote link the client can open and approve.

08

Labels & recuts

Part labels with a QR code back to the cabinet, and recuts of a single damaged part.

Built for your machine

Files your router already understands

Mach4

G-code by the sheet, one file per bit. Run them in number order; the profile cuts the parts free last.

CNC12

Centroid CNC12 on Avid machines. The same codes as Avid's own post. With a tool changer, each change calls the bit by its number.

DXF

Any CAM, Vectric included. Parts on named layers, with dados and cutouts on their own, ready to toolpath.

Preview

Watch the cut before you run it. A 3D preview plays every file, so a missing bit or a wrong depth shows on screen, not on the sheet.

(Cabinet Run)(for Centroid CNC12 (Avid))(Material Size: X=96.0000, Y=48.0000, Z=0.7500)G53 Z0G17 G40G20G80G90T12 M6M3 S18000(========== DOOR POCKETS - CORNERS ==========)(Shaker pocket - frame bevel: V-bit 60 deg)G1 X3.2500 Y4.2500 F120.0...M5M30
Free to design · $25/mo to cut

Design the whole kitchen for free. Pay when you send it to the CNC.

One free sheet to try it, a 14-day full trial, then unlimited DXF and G-code for Mach4 and CNC12 (Avid) for twenty dollars a month. Cancel anytime.
